Decided to strip down the head stock and check all bearings and the drive belt ,

this photo shows the head stock with the shaft removed

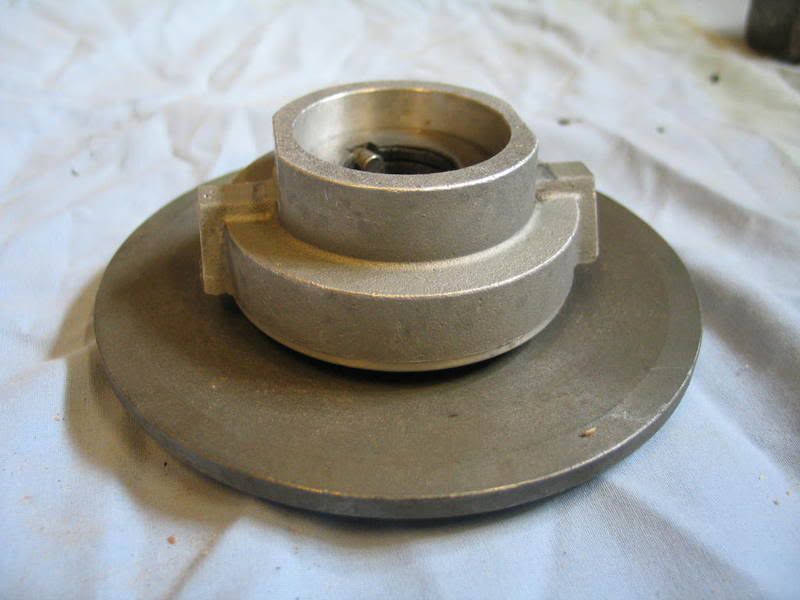

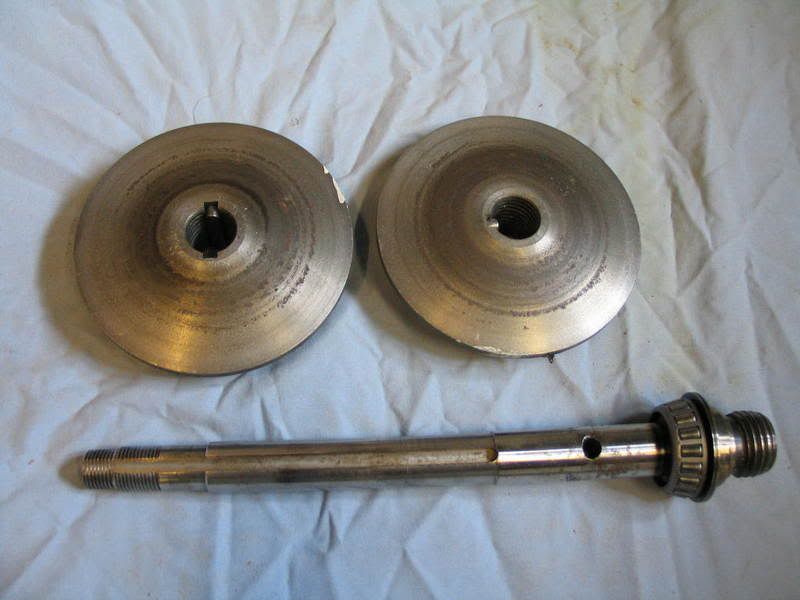

the shaft removed and bearings cleaned

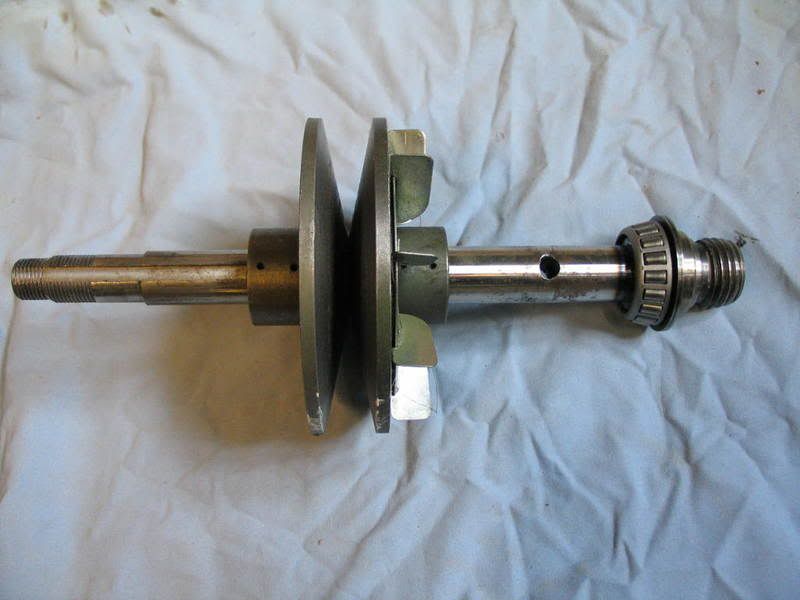

ant the other side of the pulleys

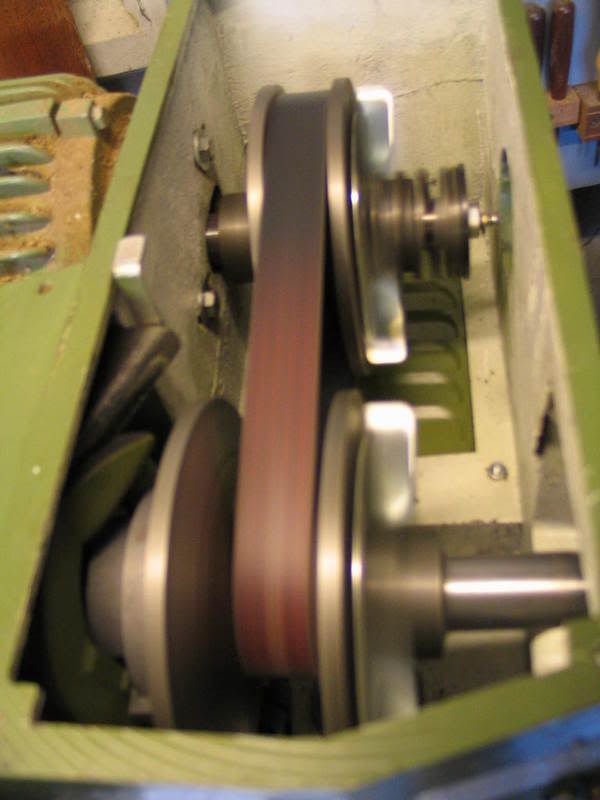

quit a clever mechanical speed control by making the belt move up an down the pullyes







new intermediate bearing fitted




and speed adjuster cover refitted




All back togeter with new high melting point grease




and et even works when I pushed the go button
:shock:



sounds quieter an I now know its all ok with the new bearing and belt
